Product range
Floor trap Wiper Invisible, tileable DR100275900015
Bränd:
Wiper
Tüüp:
Floor trap
Seeria:
Invisible
Materjal:
Stainless steel

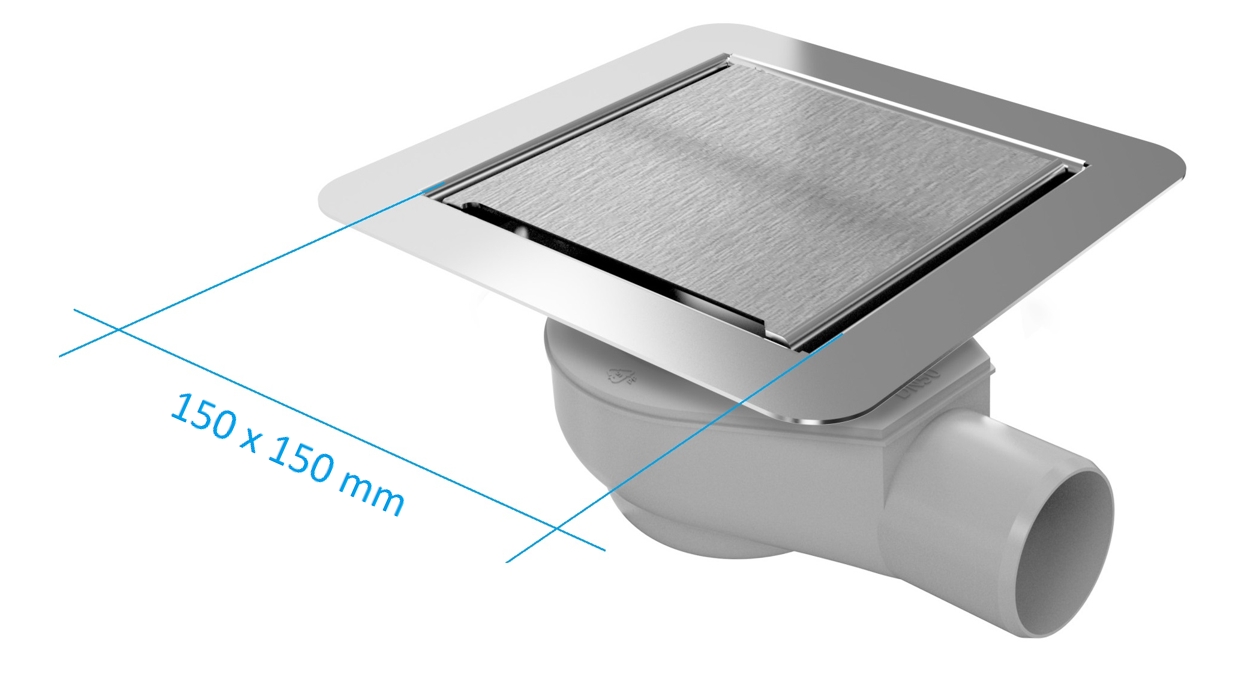

- Dimensions: 150x150 mm (visible part)
- Installation depth min. 91 mm
- Trap cover to be covered with tile material
- Stainless steel trap body and trap cover, steel thickness 1.6 mm
- Siphon DROP 35, 35mm water column, drain connection DN50
- Siphon rotatable 360°
- Water flow rate: 48L/min
- Complies with EN1253 standards

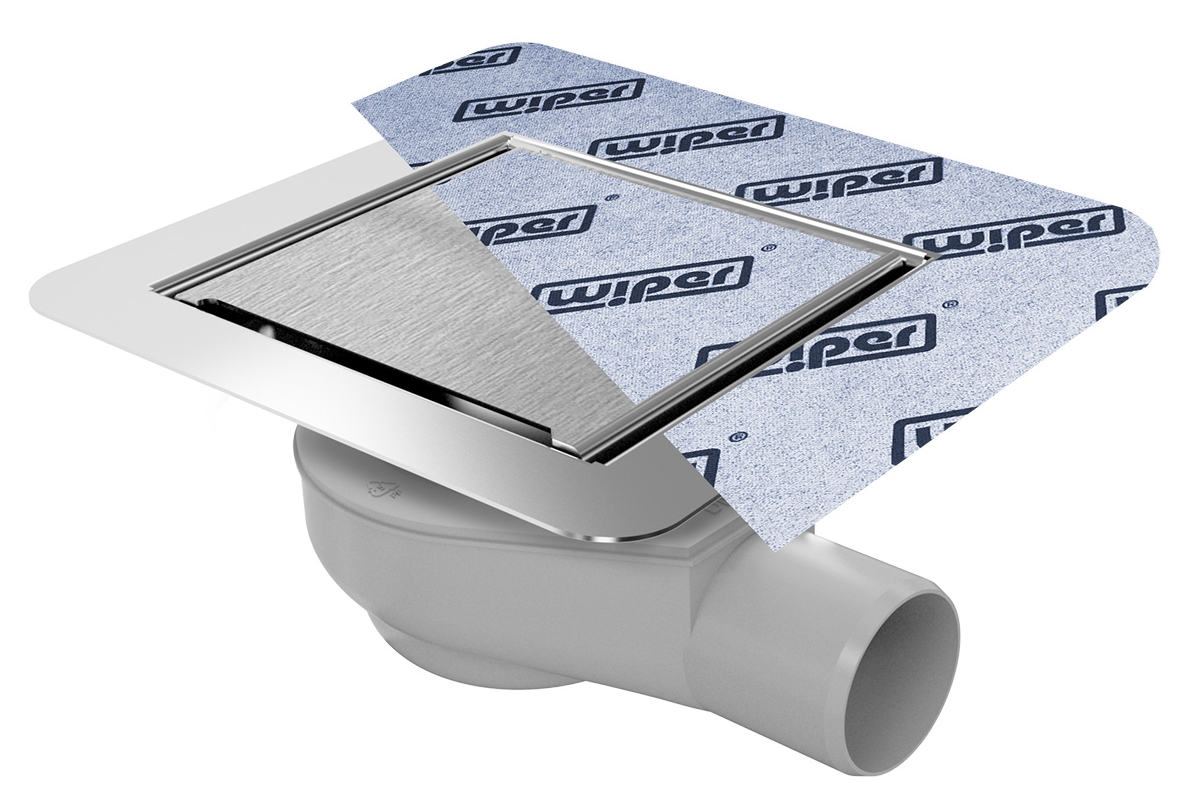

- Waterproofing fabric not included

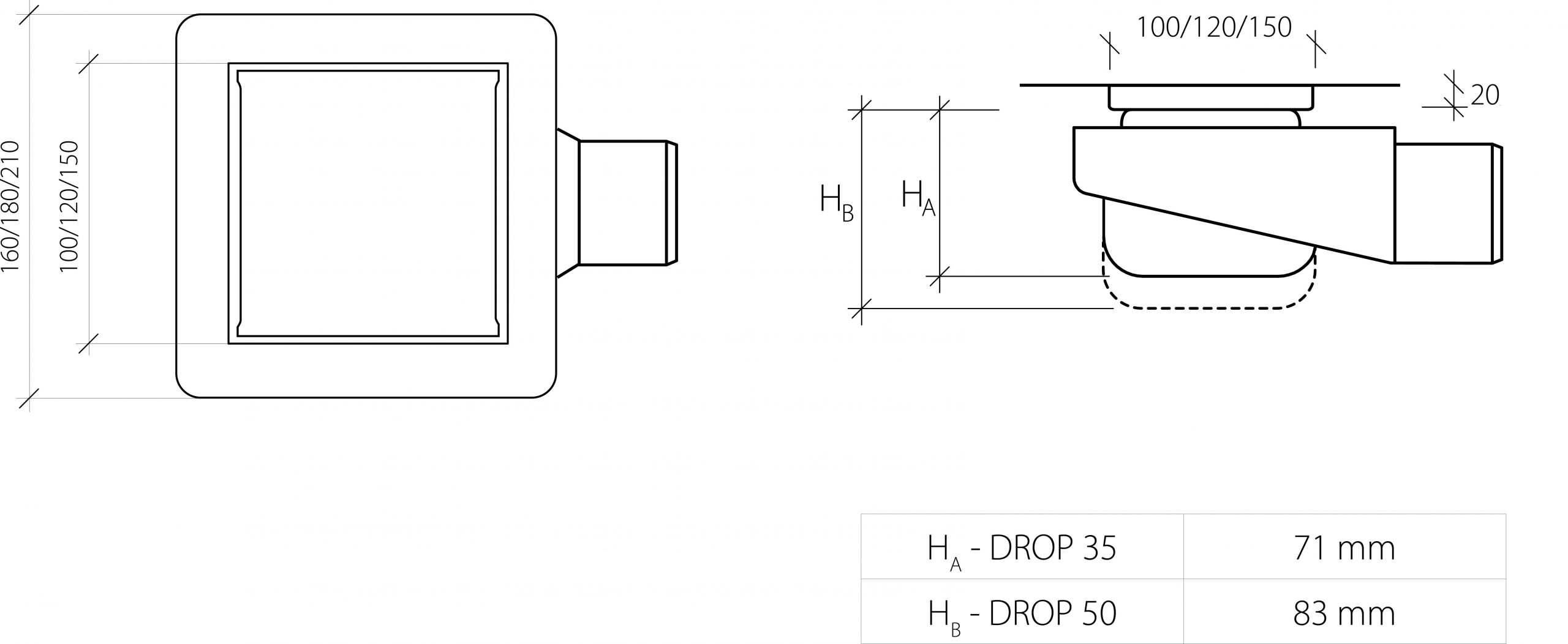

- Technical drawing
- Technical drawing II
- Maintenance and installation instructions
